LHD (Left-Hand Drive) and RHD (Right-Hand Drive):
Where the drivetrain is located to protect the chain/sprocket when you grind.
RHD: Riders that mostly grind with the left side pegs
LHD: Riders that mostly grind with the right side pegs

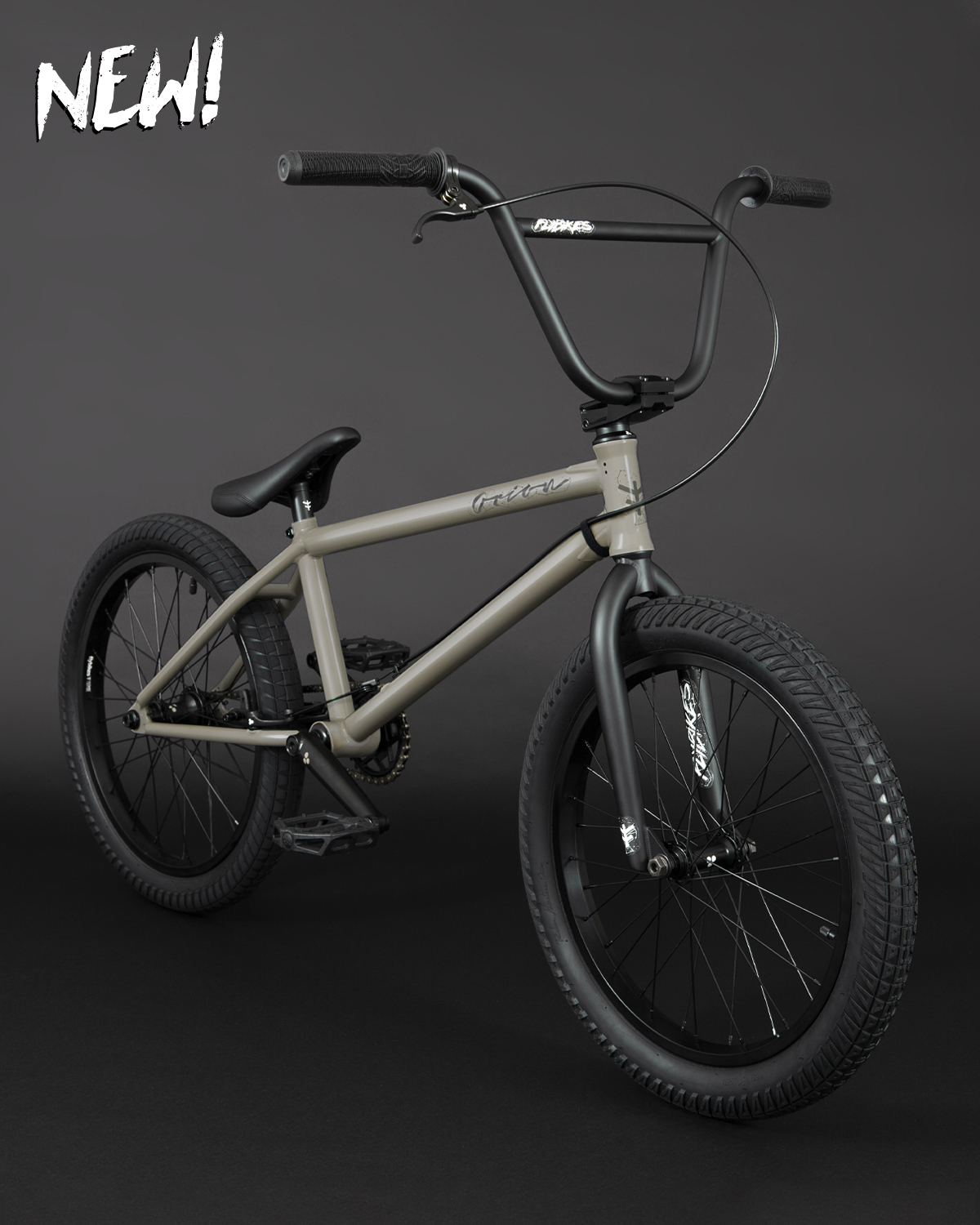

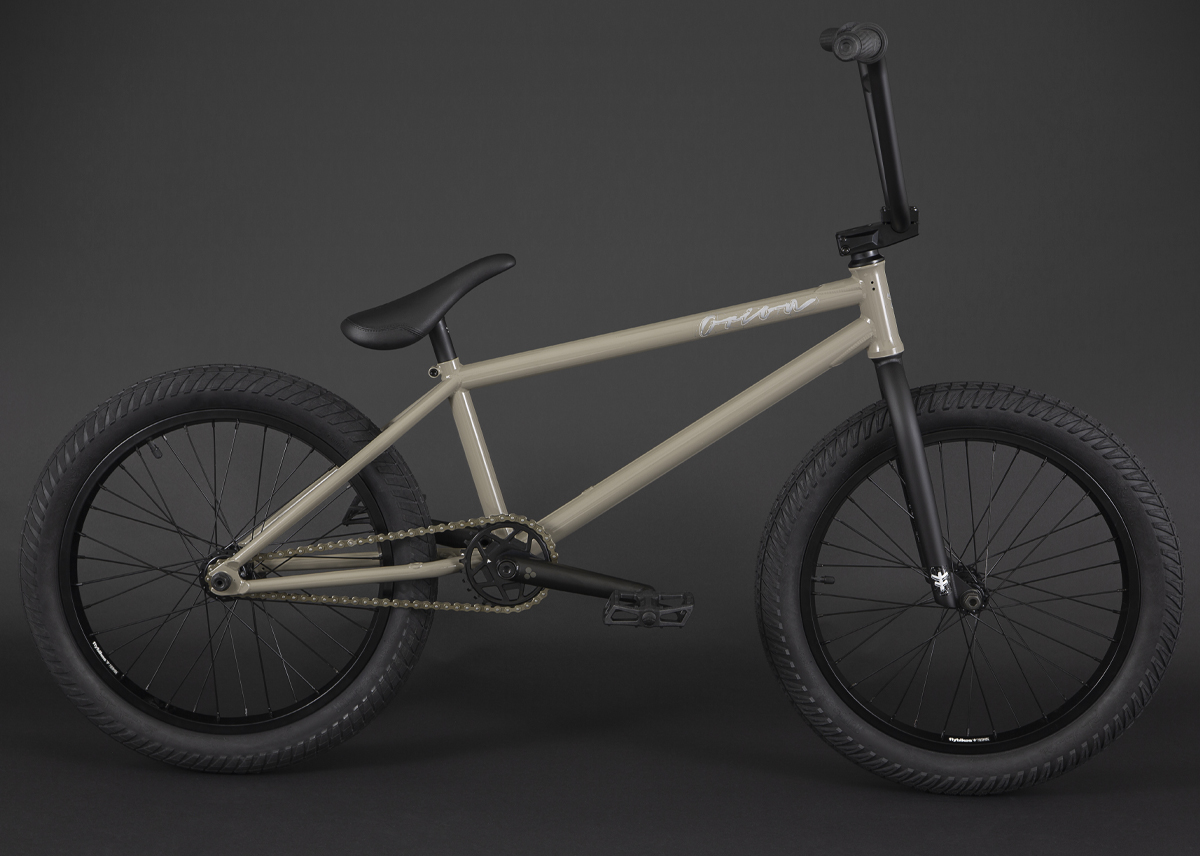

This is the way a top transition/trails BMX Bike looks like. ORION is one of the bikes we are more proud of, as it is inspired by Sergio and Dovey's setups to fit with their riding style perfectly. This transition freestyle BMX is fully equipped with their preferred Fly aftermarket hits like the Ruben signed line, sealed hubs, removable brake mounts, chain tensioners, and more.

• 100% CrMo Frame, Fork & Bars.
• 1 Piece CNC fork steer tube
• Female axle & sealed Hubs.
• Double wall rims
• Sealed Bottom bracket & headset
• CNC stem, sprocket & seat post
• 3 Piece CrMo crankset.
• Removable brake mounts.
• Chain tensioners.
• The option without brakes does not include any brake hardware.

If you want to upgrade this bike, add it to the cart and the Upgrade Product in stock, like CNC Brakes Kit or Ruben Alu Pedals. The product will be replaced by the Upgrade Product while deducting the cost of the original one.

SPECIFICATIONS

Orion Bmx Specs

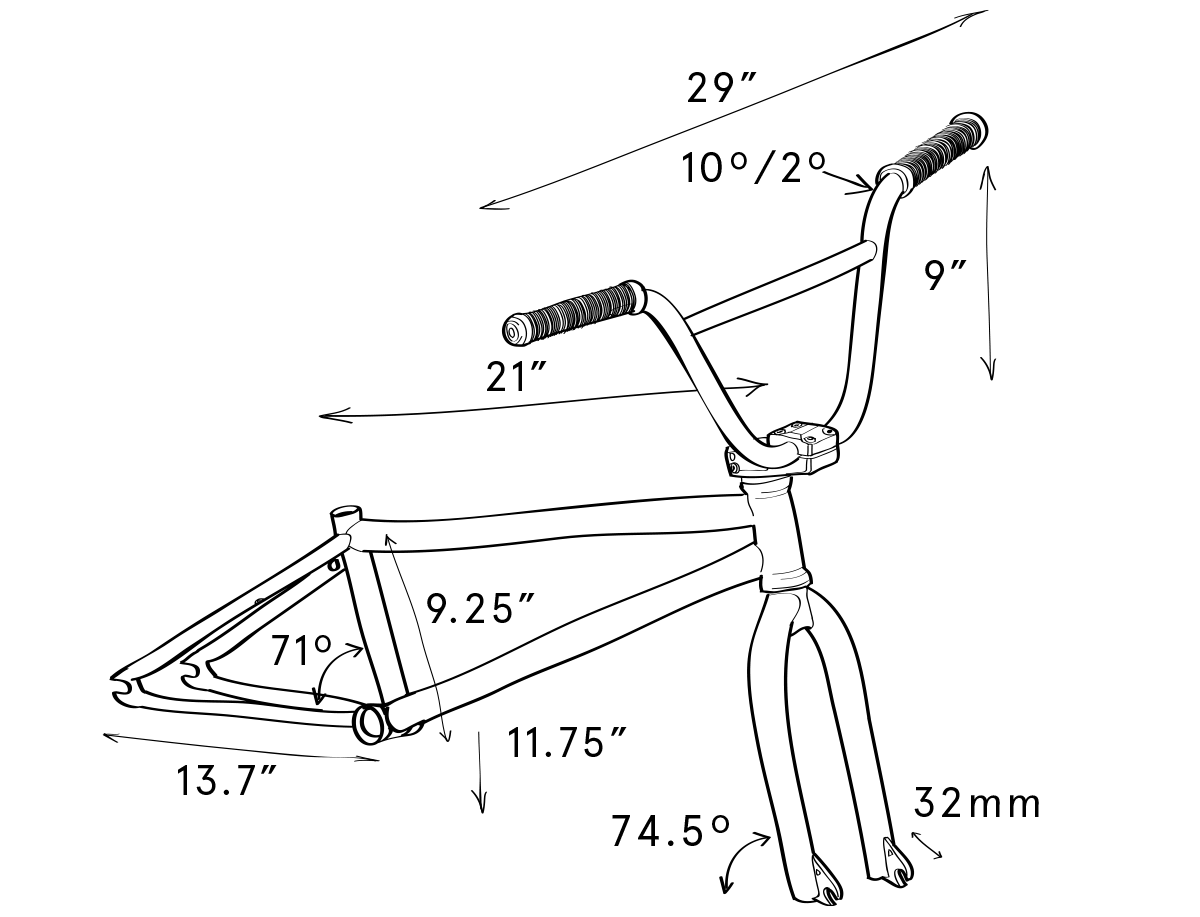

  • GEOMETRY:
  • TOP TUBE LENGTH
    21”
  • CHAIN STAY LENGTH
    13.7”
  • HEAD TUBE ANGLE
    74.5º
  • SEAT TUBE ANGLE
    71º
  • BB HEIGHT
    11.75”
  • STAND OVER HEIGHT
    9.25”
  • FORK OFFSET
    32mm.
  • BAR RISE
    9"
  • BAR WIDTH
    29”
  • BAR BACKSWEEP
    10º
  • BAR UPSWEEP
  • _
  • SPECIFICATIONS:
  • Frame
    Full 4130 CrMo / Removable Brake Mounts / Chain Tensioners
  • Fork
    Integrated cone shape design / Full 4130 CrMo / 1 piece steer tube
  • Bars
    Full 4130 CrMo
  • Grips
    Fly Ruben 2 / 160 mm Long
  • Stem
    Fly Volcano 25mm Rise / 50mm Reach / CNC Machined / 6061-T6 Aluminum
  • Headset
    Trebol / Sealed Bearing / CNC Machined / 6061-T6 Aluminum
  • Lever
    Generic Inged / Forged / 6061 T-6 Aluminum
  • Brake
    Trebol Springhanger / Forged / 6061 T-6 Aluminum
  • Cranks
    Trebol 3Pc / 4130 CrMo / 170 mm Arm Length
  • Bottom Bracket
    Mid / Sealed Bearing
  • Sprocket
    Fly Tractor TT / CNC Machined / 7075-T6 Aluminum / 29T
  • Pedals
    Fly Ruben Graphite / Nylon - Fiberglass Compound
  • Chain
    512 Type / 74 Links
  • Rims
    Fly Piramide / Double Wall / 6061-T6 Aluminum
  • Front Hub
    Trebol Bueno / Sealed Bearing / 3/8” Female Axle / 36H
  • Rear Hub
    Trebol Bueno / Sealed Bearing / 14mm Female Axle / 36H / 9T
  • Tires
    Fly Ruben Ligera 2.40 Front / Fly Ruben 2.25 Rear / 60 TPI / 120 PSI
  • Seat
    Fly Sierra 3 Seat / 100% Synthetic Leather / 7 mm Thickness
  • Post
    Fly Tripod / CNC Machined / 6061-T6 Aluminum / 180 mm Long
  • Weight
    11.4 kg. / 25.1 lb.
