Sierra Frameset
Frames & Forks
Framesets Sierra Frameset
paypal visa maestro mastercard klarna
All aftermarket frames are available with the full range of Volcano Steering line.

Choose to refresh your setup to the max and save 25% from individual parts purchase.

The Sierra Frameset includes: Sierra Frame (Sergio Layos signature), Volcano Forks in 30 or 33mm Offset, Volcano Stem 25M, and Volcano 15 Headset.

Sierra Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.

SPECIFICATIONS

Sierra Frameset Specs

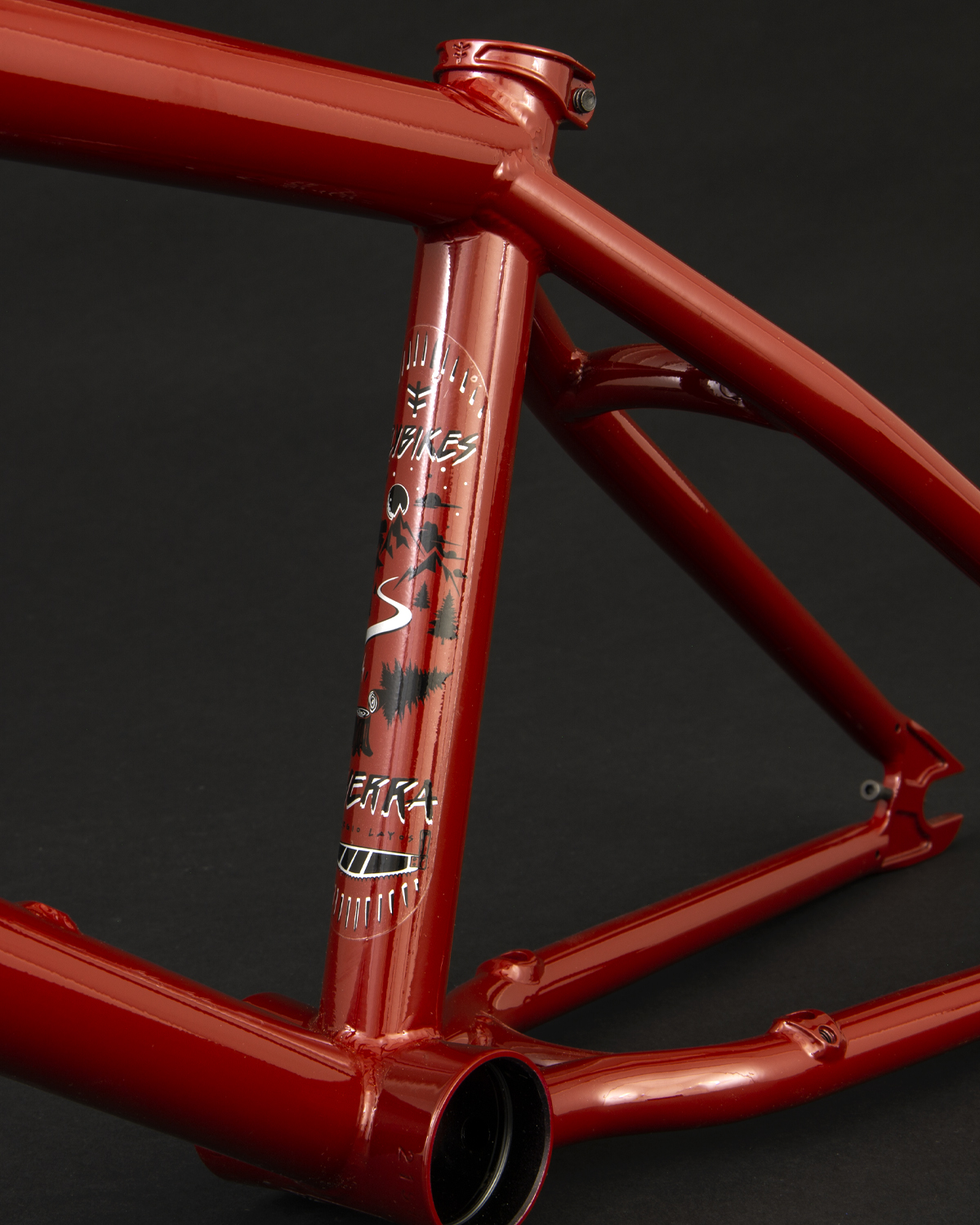

  • Sierra Frame
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seatstays Bridge Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Top Tube
    20.6" / 21" / 21.4"
  • Head Tube
    75º
  • Seat Tube
    71º
  • Rear End
    13.6"
  • Standover
    8.75"
  • Bottom Bracket Height
    11.5"
  • Head Tube Length
    113 mm / 4.45"
  • Brake System
    EBS / Chainstays
  • Weight 21"
    2.200 kg / 4.85 lb
  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    30 mm / 33mm
  • Weight Black
    1.049g / 2.31 lb (Top bolt included)
  • Volcano 25M Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    25 mm
  • Reach
    M: 50mm
  • Width
    M: 47 mm
  • Weight
    281 g / 9.9 oz
  • Volcano 15 Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
