Savanna Frameset
Frames & Forks
Framesets Savanna Frameset
paypal visa maestro mastercard klarna
All aftermarket frames are available with the full range of Volcano Steering line.
Choose to refresh your setup to the max and save 25% from individual parts purchase.

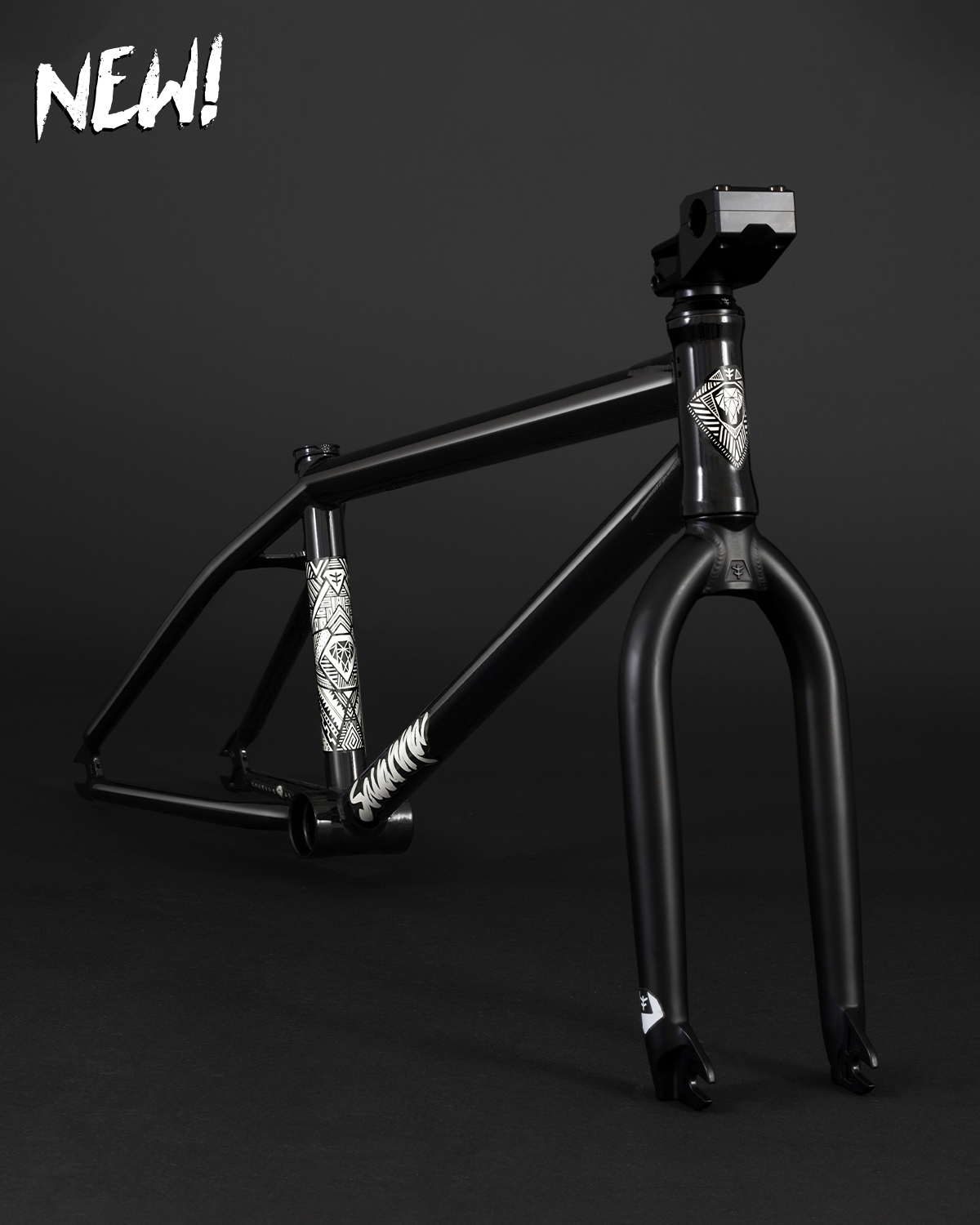

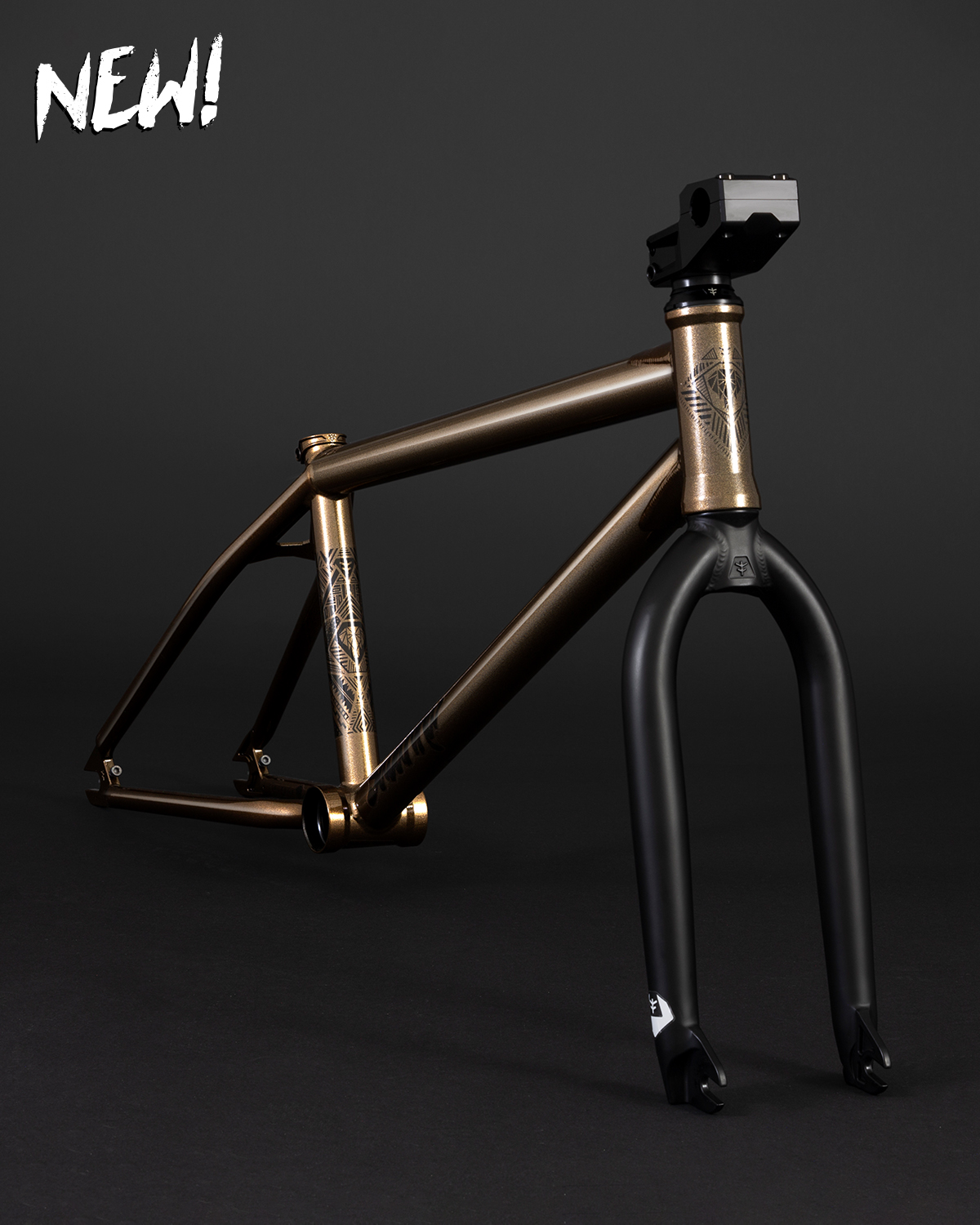

The Savanna Frameset includes: Savanna Frame (Courage Adams signature), Volcano Forks in 23 or 30mm Offset, Volcano Stem 35M, and Volcano 15 Headset.

Savanna Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.

SPECIFICATIONS

Savanna Frameset Specs
  • Savanna Frame
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Stays Bridges Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Gussets Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Head Tube
    75.5º
  • Seat Tube
    71º
  • Rear End
    13" Slammed
  • Standover
    9.25"
  • Bottom Bracket Height
    11.75"
  • Top Tube
    20.6" / 21"
  • Head Tube Height
    113 mm / 4.45"
  • Brake System
    Brakeless
  • Weight 21"
    2.400g / 5.3lb
  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    30mm / 23mm
  • Weight
    1.049g / 2.31 lb (Top bolt included)
  • Volcano 25 Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    35 mm
  • Reach
    48 mm
  • Width
    50 mm
  • Weight
    366 g / 12.9 oz
  • Volcano Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
