Volcano 23 Fork
Frames & Forks
Forks Volcano 23 Fork
paypal visa maestro mastercard klarna

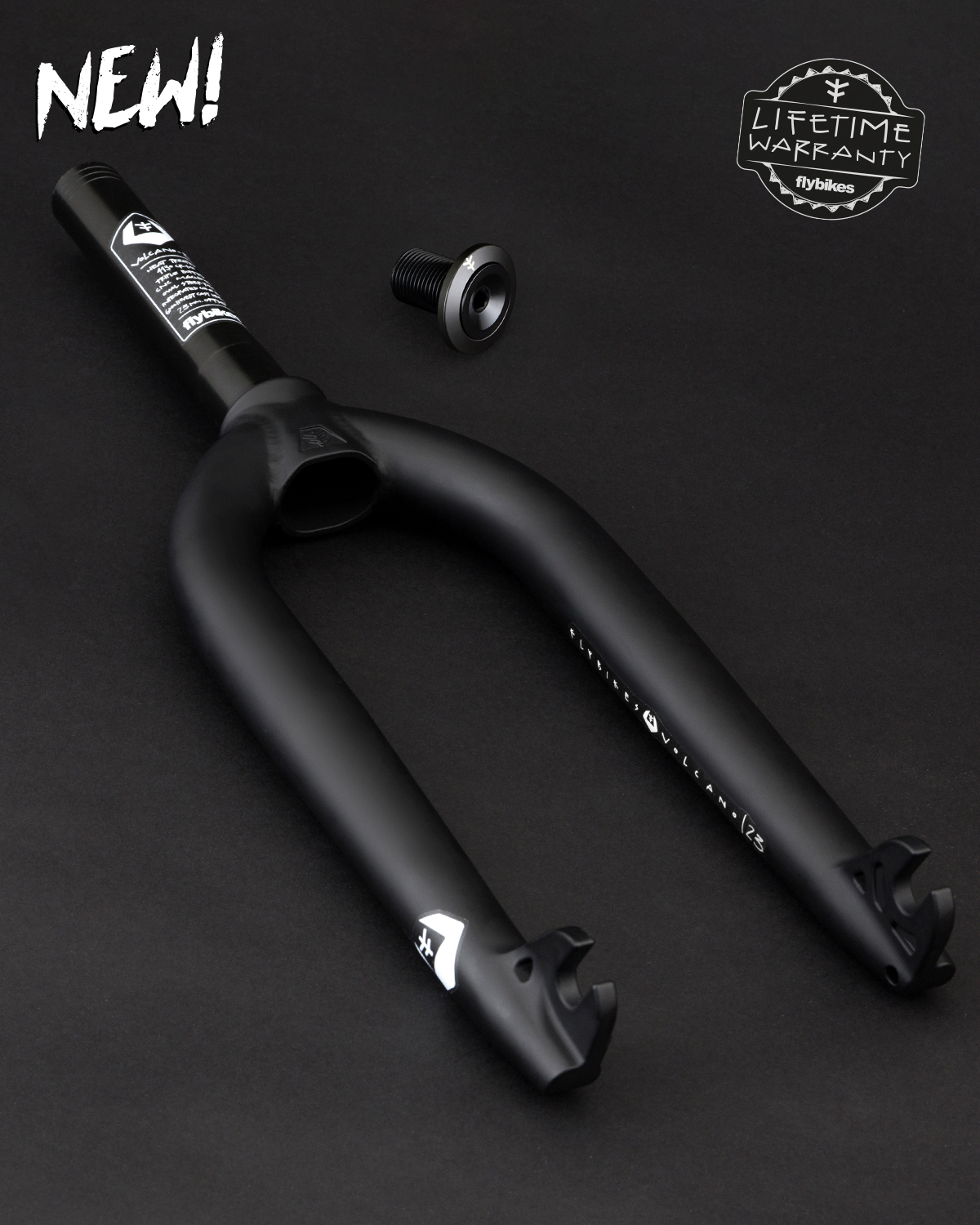

We’re bringing you a totally new concept for steer-tubes for BMX that’s not only amazing looking but also serves a functional purpose. The brand new Volcano fork includes a slightly ovalized fork crown that helps spread the fork legs farther apart for greater tire clearance, it also creates a stronger overall junction and flushes the fork crown up to the base of the head-tube for an amazing seamless look. The “Volcano 23” dropouts are a refined 23mm offset version of the Agua dropout, with a new improved bottom cone now angled and rounded to avoid hanging-up during grinds. The forks also feature a new improved welding process to create a deeper weld penetration that helps make this fork the strongest fork it can possibly be. The new Volcano bolt has a sunken cone washer for better tightening and uses an insert on the steer tube instead of threads on the steer tube to make the fork even stronger.

This product is covered with Lifetime Warranty.

Top bolt included

SPECIFICATIONS

  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    23 mm
  • Steer Tube Length
    165 mm
  • Weight Black
    1.049g / 2.31 lb (Top bolt included)
  • Weight Flat Raw
    1.014g / 2.23 lb (Top bolt included)
