Flybikes BMX - Magneto Hub Set Female Al Axle

Magneto Hub Set Female Al Axle

Wheels

Magneto Hubs Magneto Hub Set Female Al Axle

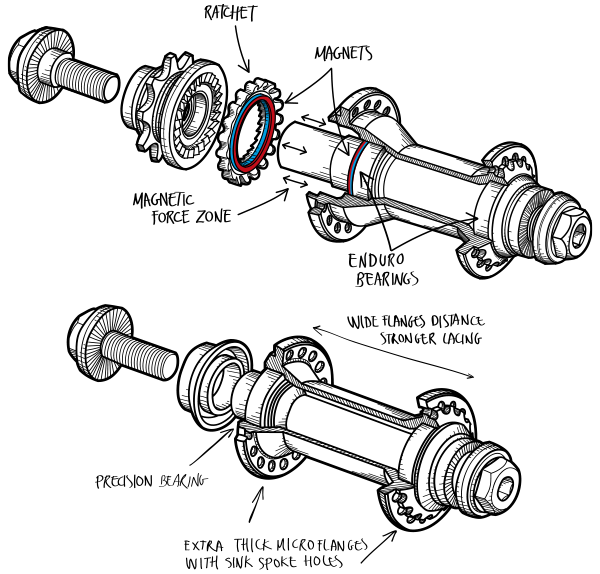

The Magneto Cassette features a magnetic system engage using the force of two magnets that allow the ratchet ring to engage. The magnetic field provides an even repelling force, making the ratchet work completely straight and reducing friction compared to springs system. The Neomidium magnets maintain the magnetic field pretty much forever, as well. These properties create the fastest, most reliable and most durable system possible. Not to mention, the unique and powerful noise...

Female Magneto hubs (Except M10 version) are designed for 6mm. dropouts or thicker. For frames with thinner dropouts will require a washer between the dropout and the Magneto bolt washer.

The Magneto Front Hub features oversized bearings that allow us to use a strong 7075 Aluminum female axle. The end caps and bolts use the same process as the Cassette hub. Compatible with Magneto non-drive side hub guard.
• This set contains both front and rear Magneto hubs.
• NOT SUITABLE FOR PEGS USE.
• Covered with lifetime warranty.
• Made in Europe.
• Secure payments.
• Products in stock delivered in 24 hours to 7 working days.

SPECIFICATIONS

Notes:
NOT SUITABLE FOR PEGS USE.
Only works with dropouts 6mm. and thicker. For thinner dropouts, a 14mm. ID washer is required.
The hub features 10mm. / 3/8" bolt on drive side with 14mm. OD section to fit the dropout.
The simplicity of the system is also great for customization. The Magneto cassette features ONLY ONE moving part, the assembly is as easy as it can get and reduces the overall weight significantly.
We are using heat treated CrMo caps instead of aluminum to be stiff and avoid wobble that can form over time and they are CNC machined outside and inside to achieve almost the same weight.
The shell is made of a much stronger 7075 Aluminum and features the sunken spoke holes that we created with our Classic Front Hub.
The driver, end caps and bolts use an anti-rust process that also gives the hub an awesome color finish.
Magneto Cassette Hub Specs:

Magneto magnetic engage system
7075-T6 Aluminum shell with recessed spoke holes design
Heat treated CrMo driver, caps & bolts with anti-rust treatment
7075 Aluminum axle
Internally & externally machined CNC CrMo caps
Non-Drive Side Nylon Guard compatible with front hub
Drive Side Nylon guard available
Made in Europe
Weight AL axle: 365 gr / 12.8 oz.
Lacing Info:
Drive Side Flange Diameter: 48mm / 8mm Spokes
Driveside Ofsett: 29mm
Non-Drive Side Flange Diameter: 41mm / 8mm Spokes
Non-Drive Side Offset: 19mm
Magneto Front Hub Specs:
7075-T6 Aluminum shell
Oversized high quality bearings
Internally & externally machined CNC CrMo caps
7075 Aluminum axle
Heat treated CrMo driver, caps & bolts with anti-rust treatment
Made in Europe
Weight AL axle: 259 gr / 9.1 oz.
Lacing Info:
Flange Diameter: 41mm / 8mm Spokes
Offset: 19mm
Spoke Lengths:
Magneto Cassette to Lunar Rim: 184mm Drive Side / 186mm Non-Drive Side
Magneto Cassette to Lunar X Lace Rim: 188mm Drive Side / 190mm Non-Drive Side
Magneto Front to Lunar Rim: 186mm
Magneto Front to Lunar X Lace Rim: 190mm
