2016 Preview: Translucent Black Fuego Frame
8 years ago
![2016 Preview: Translucent Black Fuego Frame](https://www.flybikes.com/storage/articles/1451059231134.jpg)

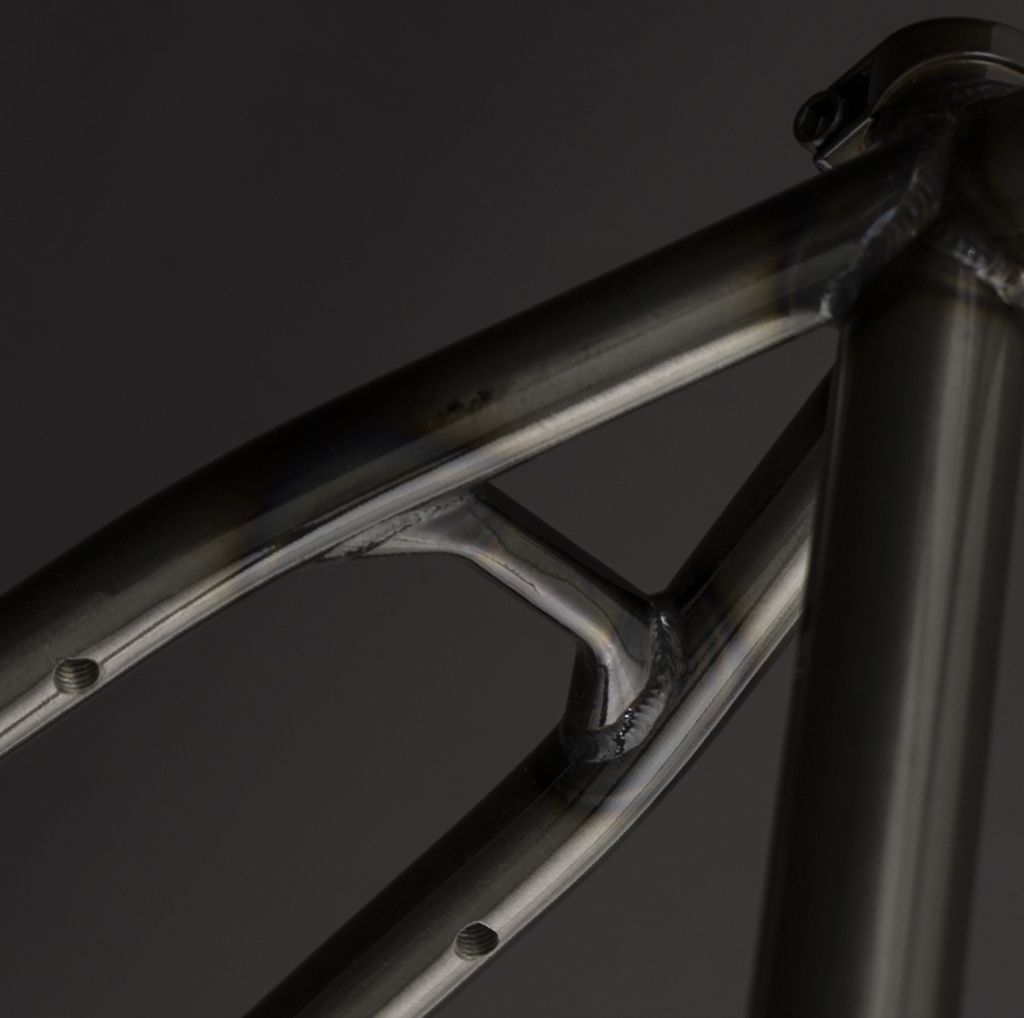

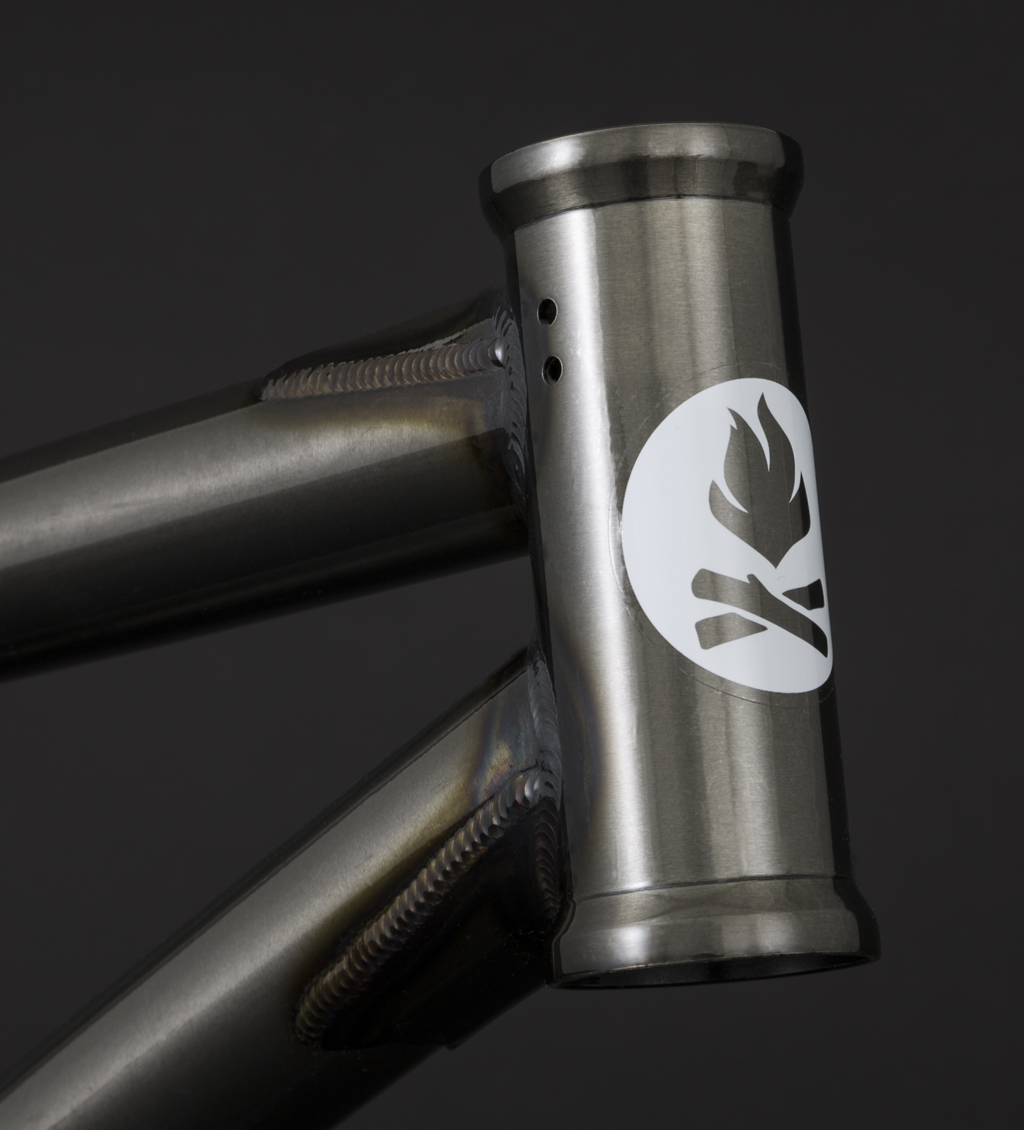

For 2016, Devon Smillie wanted to make a few changes to his signature Fuego frame. First off, you will notice that there are now tapered external gussets on the top and down tubes. These are over the existing internal integrated gussets that were previously found on his frame last year, making for double the gussets and a super strong front end! Devon also wanted to raise his seat tube height a quart of an inch and shorten the back end up. All in all, it's a super strong frame that's built to take some heavy abuse. Add in a couple fresh coats of paint and an additional top tube length and we have the 2016 Fuego frame!
Tubing: Seamless 4130 Sanko chromoly
Head tube angle: 75.5
Seat tube angle: 71
Standover height: 9.25"
Bottom bracket height: 11.75"
Chain stay length: 13.35"
Top Tube Lengths: 20.5" and 21"
Colors: Semi-Translucent Brown, Translucent Black and Flat Grey
Weight: 5.57 lb.
You can view more photos and information on the Fuego frame here: 2016 Fuego Frame
Our full range of 2016 complete bikes, frames and parts are available worldwide through Flybikes dealers now!
